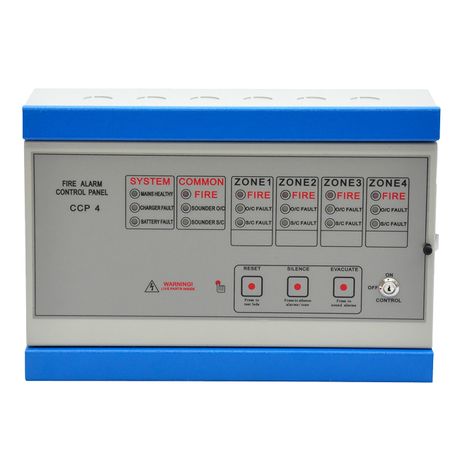

Conventional Fire Alarm Control Panel
Product Features:
1. Input voltage:240VAC±10% / 50/60Hz
2. Battery: 24VDC
3. Charging voltage protection: 1.6Ah glass fuse
4. Sounder output: 24V nominal EOL 10K resistor
5. Auxiliary contacts: 30VDC,1A max. NC/NO
6. Main supply protection: glass fuse
7. Sounder protection: 2x500mA glass fuse
8. Reverse battery protection: charger glass fuse
9. Zone EOL: 5.6K resistor
10. Zoned visual red alarm and yellow trouble indicators
11. Continuous signal during alarm
12. Built-in battery charger
13. Low / no power and battery detection
14. Automatic loading and testing of battery
15. Evacuate ( alarm resound)

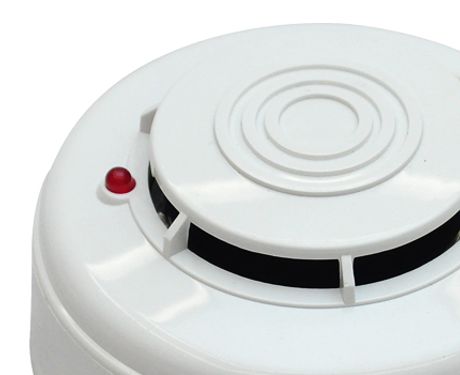

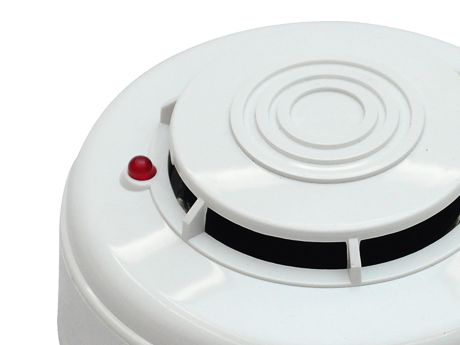

Smoke Detector
Product Features:
1. Voltage:16V ～32V DC
2. Alarm current: 10~100mA
3. Static current / voltage: 35μA / 24VDC
4. Operating temperature: 0℃ -- +90℃
5. Working humidity: ＜95% RH
6. Coverage: 50㎡

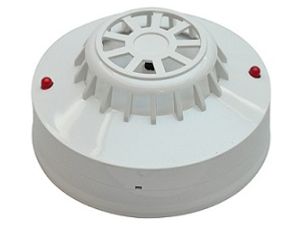

Heat Detector
Product Features:
1. Voltage:16V ～32V DC
2. Static current: 40μA~80μA
3. Alarm temperature: 65℃
4. Alarm current: ＜ 30mA
5. Working humidity: ＜95% RH
6. Installing method: ceiling installation
7. Detecting temperature method: fixed temperature
Manual Call Point
Product Features:
1. Voltage range: 9V--24VDC
2. Static current: ≤10mA
3. Alarm current: ≤20mA
4. Operating temperature: -5℃ -- +65℃
5. Working humidity: 10%--90% RH
6.Reset able with Key
Fire Alarm Bell
Product Features:
1. Operating voltage: 24VDC±5% (no pole)
2. Operating current: ≤23mA
3. Sound level: ＞90dB

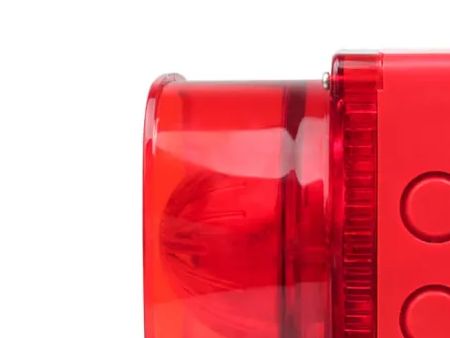

Sounder Strobe
Product Features:
1. Rated voltage: 24VDC
2. Rated current: 80--100mA
3. Flash intensity: 1.2s
4. Flash period: 1.5s
5. Audio alarm: 110dB
6. Humidity range: ≤95%RH
Weather Proof Sounder Flasher IP65
Product Features:
1. Working voltage:24v
2.Alarm current: 40mA(with sound +flash)/ 25mA(with sound)/15mA(with flash)
3.Operating temperature: -10 ~ 60 ºC
4.Sound pressure: >85dB
5.Alarm mode: independent alarm
6.Environmental humidity: ≤ 95% RH
Remote Indicator
Product Features:
Voltage: 24VDC (20mA)
Voltage: 3.3VDC (20mA)
Flash mode: 2 LED alternating lit
Flash color: red
Product size: 8.5x8.5 x3cm

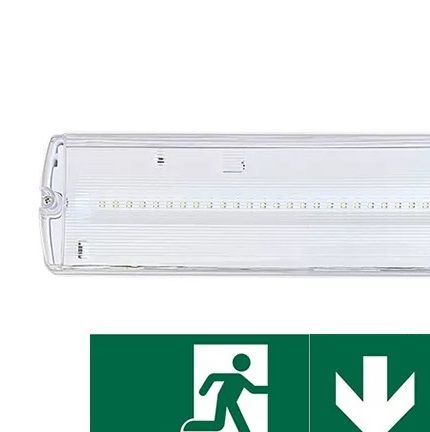

MS Z2645E Emergency Light IP 65 Maintained & Non - Maintained
Product Features:
Battery Lithium 3.7V 1.5Ah
Charge Time 24H
Emergency Duration 3H
Input Voltage AC220-240V
Operation Mode Maintained/Non-Maintained
LED Qty 27pcs SMD 2835
AC Lumen 135LM / 150LM
Emergency Lumen 135LM / 150LM
Material PC
Dimension 352*110*68mm

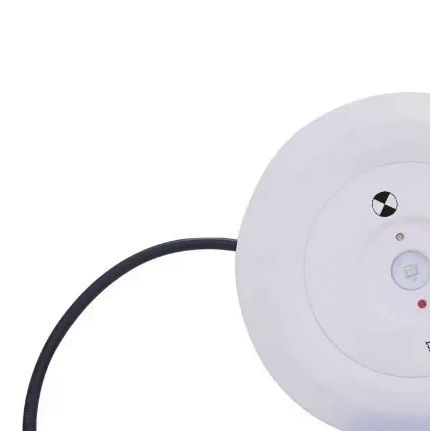

BY-Z1003S Emergency Led Down Light
Product Features:
Charge Time 16H
Emergency Duration 3H
Input Voltage AC220V~240V
Operation Mode Maintained & Non-Maintained
LED Qty 1pcs SMD 3535
AC Lumen 280LM
Emergency Lumen 180LM
Material PC + Iron
MS-Z2035C Emergency Twin Spot Light High intensity Light
Product Features:
Super Bright Combo Heads Adjustable Twin Spot Light Automatic Exit Led Emergency Light.
LEAD-ACID BATTERY HEAVY DUTY
Emergency Duration: ≥3H
